| Place of Origin: | China |
|---|---|
| Brand Name: | LYCN |
| Certification: | ROHS/UL/SGS |
| Model Number: | 2341 |
| Minimum Order Quantity: | 1200 PCS |
| Price: | Negotiable |
| Packaging Details: | TRAY/TUBE |
| Delivery Time: | 25-30 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 7000000Kpcs |
| Current Rating: | 1.0AMP | Contact Resistance: | 30mΩ Max |
|---|---|---|---|
| Insulation Resustance: | 1000mΩ Min | Withstand Voltage: | 300V AC/MINUTE |
| Operation Temperature: | ﹣40℃ To +105℃ | Insulator Material: | LCP |
| Highlight: | 4.3mm Female Header Connector,PCB Board Female Header Connector,SMT Single Row Header Connector |
||

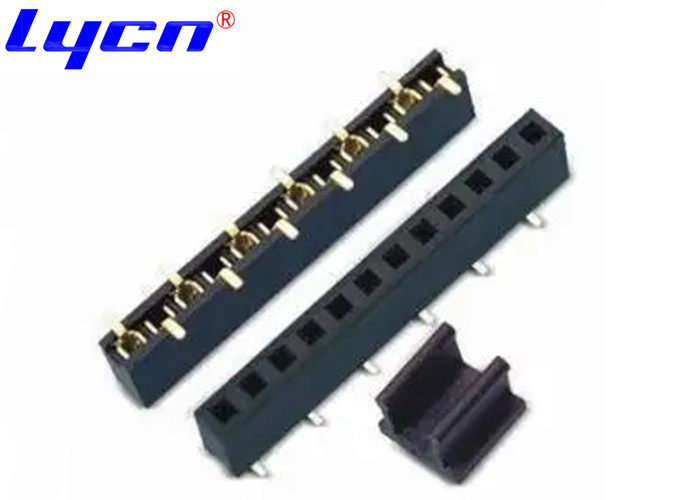

SMT Female Header Connector Single Row Height 4.3mm For PCB Board With Cover Hat
Products Application
Most our products can be used in Digital Camera, Mobile phone, Computer Mainframe, LED display, Household Electric Appliances, etc.
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments:
PCB Connectors are known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. There are also some other names for PCB connectors: Male PCB Connectors usually referred to Pin Headers, as they are simply rows of pins, while Female PCB Connectors named as Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.
Why Choose Us
1. Manufacture and trade integration,13 years export experience, 17 year manufacture experience;
2. One-stop shopping;
3. Competitive price and High quality;
Specification
| Contact Plating | Gold or Tin over 50μ Ni |
| Pitch | 1.27mm |
| Degree of Heat-Resistant | 275°C+5°C/275°C-5°C |
| Time of Heat-Resistant | 180S |
| Terminal Type | U Type Terminal |
| Contact Material | Phosphor Copper |
Drawing
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2004, sell to Southern Europe(5%), Western Europe(10%), Eastern Asia(50%), Mid East(5%), Southeast Asia(10%), Eastern Europe(5%), South America(5%), North America(10%). There are total about 101-200 people in our office.
2. What services can we provide?
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, MoneyGram, Western Union;
Language Spoken: English, Chinese
3. What is your MOQ?
The Min. order quantity is 1,000pcs, the quantity depend on the item that customers need
